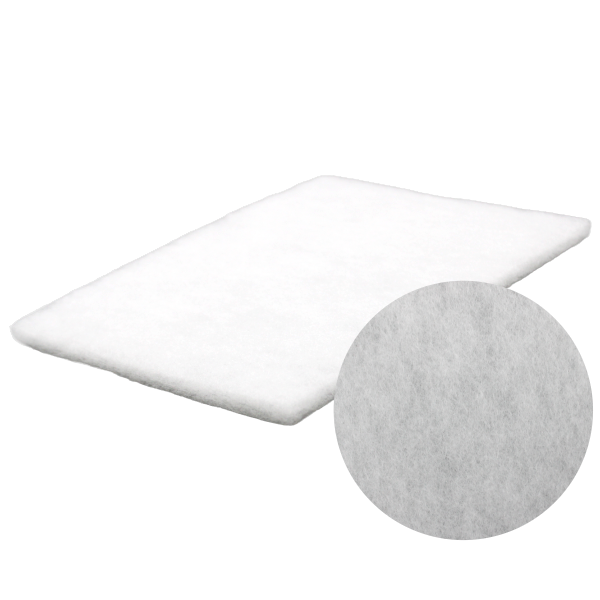

Coarse Dust Filter Mat FL 150 – ISO Coarse 45% / G2

Professional filter mat and pre-filter for laser systems, extraction units and air filtration systems

The FL 150 coarse dust filter mat, ISO Coarse 45% / G2, is a high-quality filter medium made from 100% synthetic polyester fibres for the separation of coarse dust and larger airborne particles.

Thanks to its progressive fibre structure, the filter mat is particularly suitable as a pre-filter in industrial extraction and filtration systems, including laser systems and laser cutting machines.

Depending on the required dimensions and the technical specifications of the respective filtration system, it can also be used as a pre-filter for laser systems from manufacturers such as TRUMPF, Bystronic and comparable brands.

Pre-filter for laser systems and laser cutting machines

Laser cutting processes generate dust and particles that must be captured by the extraction system. The FL 150 filter mat can be used as a coarse dust pre-filter within this filtration process.

The pre-filter captures larger particles before the air reaches downstream filtration stages. This can reduce the load on more sensitive fine filters and support the overall performance of the extraction and filtration system.

The FL 150 is therefore particularly suitable for users looking for a coarse dust filter mat or pre-filter mat for industrial laser and extraction systems.

Typical applications

• Pre-filter for laser systems and laser cutting machines
• Filter mat for TRUMPF laser systems
• Pre-filter for Bystronic laser systems
• Industrial extraction and filtration systems
• Ventilation and air-conditioning systems
• Pre-filtration to protect downstream fine filters
• General industrial air filtration

High dust-holding capacity thanks to progressive fibre structure

The filter mat features a progressive fibre structure. The filter medium becomes increasingly dense towards the clean-air side.

This design allows not only the surface but also the full depth of the filter medium to be used for dust collection. The result is a high dust-holding capacity and efficient utilisation of the entire filter material.

The polyester fibres are thermally bonded, providing the filter mat with a high level of stability.

Technical properties

Product: Coarse Dust Filter Mat FL 150
Filter class: ISO Coarse 45% / G2
Material: 100% polyester
Fibre structure: Progressive
Construction: Increasing density towards the clean-air side
Fibre bonding: Thermally bonded
Application: Coarse dust filtration / pre-filtration
Suitable for: Industrial air filtration, extraction and laser systems

Your benefits

• ISO Coarse 45% / G2
• Filter medium made from 100% polyester
• Suitable as a pre-filter for laser systems
• Suitable for applications in filtration systems from manufacturers such as TRUMPF and Bystronic
• High dust-holding capacity
• Progressive fibre structure
• Utilisation of the full filter depth
• Increased density towards the clean-air side
• Thermally bonded fibres
• Helps protect and reduce the load on downstream filter stages
• Suitable for professional and industrial applications

Tested quality – Fraunhofer IPA

The filter medium has been tested by the Fraunhofer IPA for paint-wetting impairment substances.

This makes the filter mat suitable for applications where particularly high standards are required regarding the quality and cleanliness of the filter material.

Which systems is the FL 150 filter mat suitable for?

The FL 150 is used as a coarse dust and pre-filter mat in industrial filtration systems. A typical application is in extraction systems used with laser and laser cutting machines.

Depending on the filter housing and required dimensions, the filter mat can be used, for example, in applications involving TRUMPF, Bystronic or comparable laser systems.

Before ordering, please compare the required dimensions and technical specifications of your existing filtration system.

Why use an FL 150 coarse dust filter mat as a pre-filter?

A coarse dust pre-filter captures larger dust particles during the first filtration stage. As a result, fewer particles reach the downstream filter stages.

This can reduce the load on subsequent filters and contribute to the efficient operation of the overall filtration system.

The progressive structure of the FL 150 filter mat provides high dust-holding capacity across the full depth of the filter medium.

Order the FL 150 coarse dust filter mat online now – a professional pre-filtration solution for laser systems, extraction systems and industrial air filtration applications.

Note: TRUMPF and Bystronic are trademarks of their respective owners. The brand names mentioned are used solely to describe potential areas of application. Suitability must be verified based on the dimensions and technical requirements of the respective system. No affiliation with or approval by the named manufacturers is implied unless explicitly stated otherwise.
