Coarse dust filter mat White Blue ISO Coarse 50%, 2 x 1m, 18mm
Quality for Professionals – Purchase Specialized Air Filters Online

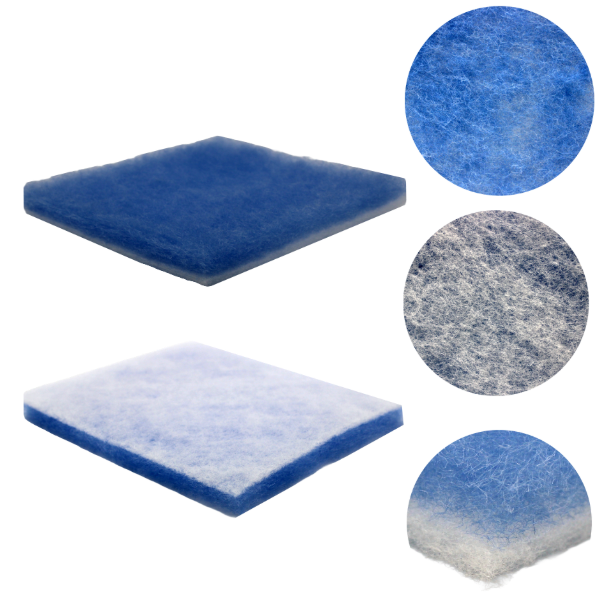

Coarse dust filter mat made from 100% progressively structured polyester fibers, thermally formed, with blue fibers on the air inlet side. The material remains effective from the beginning to the end of its service life. Its high mechanical strength guarantees dimensional stability throughout its entire lifespan, even at high airflow rates.
Areas of Application for the Air Filter
The coarse dust filter mat is ideal for coarse dust filtration where higher volumetric flow rates and high dust holding capacity are required. It can be used in air conditioning and ventilation systems as well as in paint technology. Suitable for pre-filtration or self-filtration in various forms, such as sleeve, pocket, cone, or cassette filters. It can also be used as a standalone filter mat.
Product Details of the Filter Mat
| Filter class according to ISO 16890: | ISO Coarse 50% |
| Final pressure drop according to ISO 16890 | 200 Pa |
| Filter class according to EN 779:2012 | G3 |
| Final pressure drop according to EN 779:2012 | 250 Pa |
| Filter thickness | 18 mm |
| Nominal airflow | 5400 m³/h/m² |
| Flow velocity | 1.5 m/s |
| Initial filtration efficiency | 79% |
| Average filtration efficiency (Am) | 88% |
| Initial pressure drop | 46 Pa |
| Dust holding capacity | 331.0 g/m² |
Advantages
- Synthetic nonwoven – 100% polyester
- High dust absorption
- Low pressure drop
- Long filter service life
- Low operating costs
- Moisture resistance
- Flame retardant (according to DIN 53438)
