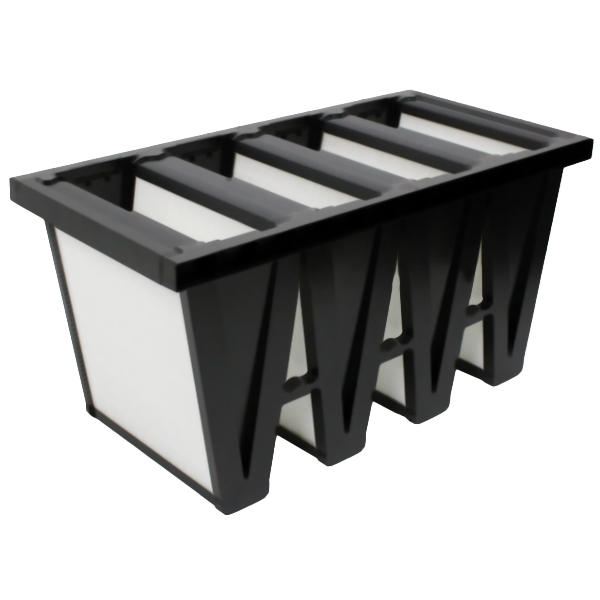

Compact Filter F7, ISO ePM2,5 70%, 592x287x292mm
Quality for the Professional – Buy Special Air Filters Online
We are the perfect partner to bring clarity in murky times with the right air filter. Our cartridges, specifically developed for the industry, are IFA tested, DGUV compliant, and made from certified materials according to DIN9001:2015 in the EU.
Areas where the air filter is used
In hygienic areas, a filter of class F7 is often used as a pre-filter and a filter of class F9 as a secondary filter. The flange allows installation in the system as a replacement for pocket filters.
Product details of the air filter
| Filter frame: | Plastic |
| Filter medium: | Glass fiber, non-hygroscopic |
| Filter package: | Consists of eight mini-pleat/"Hot Melt" filter packages |
| Sealing: | The package is sealed in the frame with two-component polyurethane adhesive |
| Filter material surface area [m²]: | 8,5 |
| Gasket: | none |
| Filtration class acc. to EN 779:2012: | F7 |
| Filtration class acc. to ISO 16890: | ePM1 55% |
| Volume flow [m³/h]: | 1750 |
| Initial pressure difference [Pa]: | 85 |
| Final pressure difference [Pa] max.: | 450 |
| Thermal resistance [°C]: | 80 |
| Flange dimensions [mm]: | 592x287 |
| Overall height [mm]: | 292 |
 |
 |
 |
