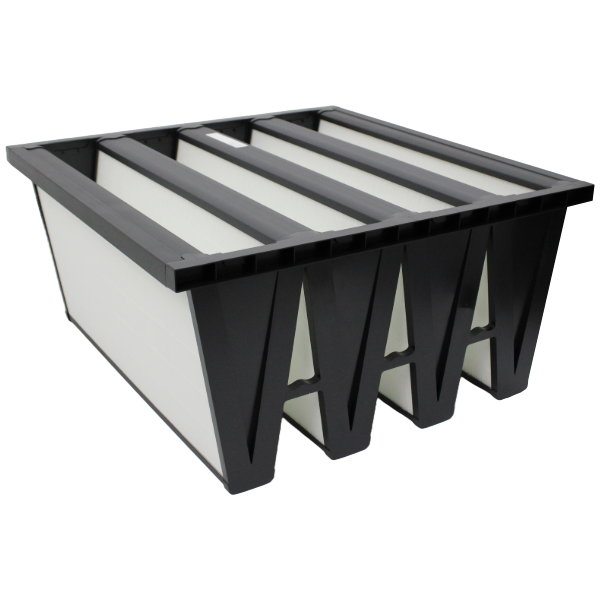

Compact Filter F9, ISO ePM1 85%, 592x592x292mm
Quality for the Professional – Buy Special Air Filters Online
We are the perfect partner to bring clarity in murky times with the right air filter. Our cartridges, specifically developed for the industry, are IFA tested, DGUV compliant, and made from certified materials according to DIN9001:2015 in the EU.
Areas where the air filter is used
They are used in ventilation and air conditioning systems as pre-filters for high-efficiency filters and as post-filters for rooms/processes that require lower air parameters, in microelectronics, medicine, chemistry, pharmaceuticals, and microbiology.
Product details of the air filter
| Filter frame: | Plastic |
| Filter medium: | Glass fiber, non-hygroscopic |

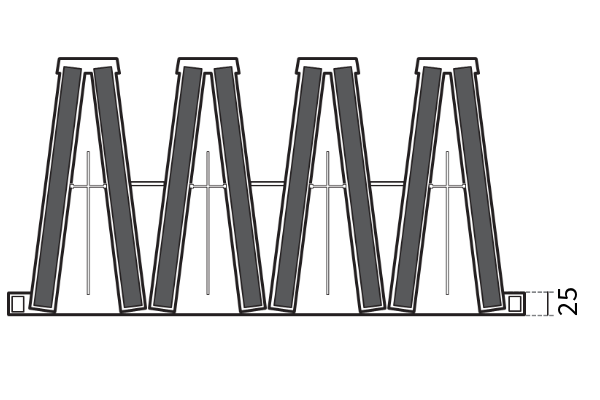

| Filter package: | Consists of eight mini-pleat/"Hot Melt" filter packages |
| Sealing: | The package is sealed in the frame with two-component polyurethane adhesive |
| Filter material surface area [m²]: | 18 |
| Gasket: | none |
| Filtration class acc. to EN 779:2012: | F9 |
| Filtration class acc. to ISO 16890: | ePM1 80% |
| Volume flow [m³/h]: | 3400 |
| Initial pressure difference [Pa]: | 115 |
| Final pressure difference [Pa] max.: | 450 |
| Thermal resistance [°C]: | 80 |

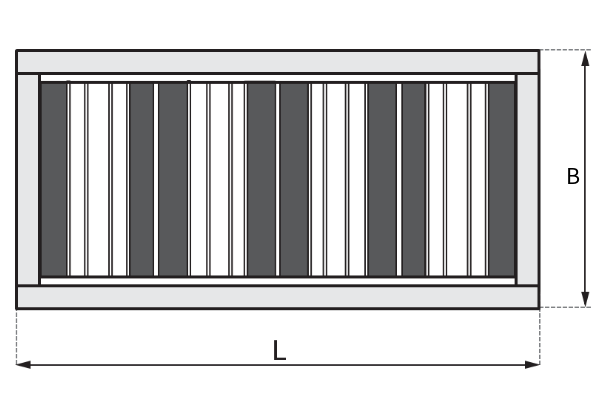

| Flange dimensions [mm]: | 592x592 |
| Overall height [mm]: | 292 |
 |
 |
 |
